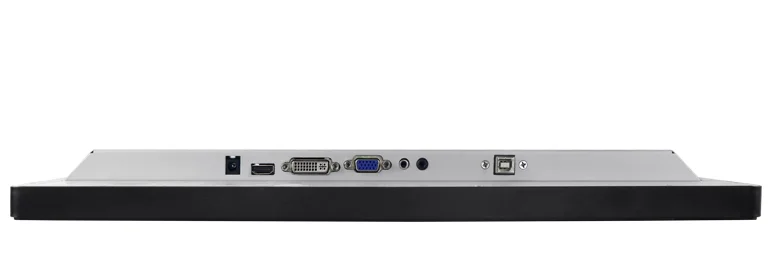

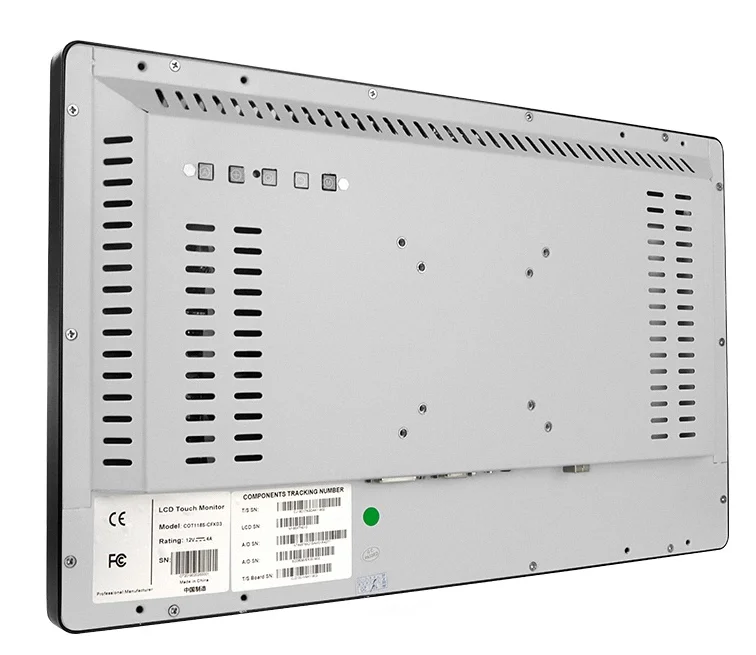

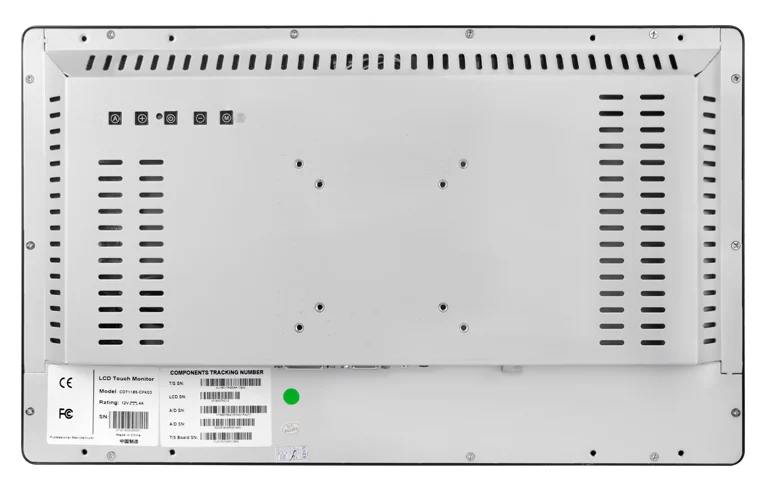

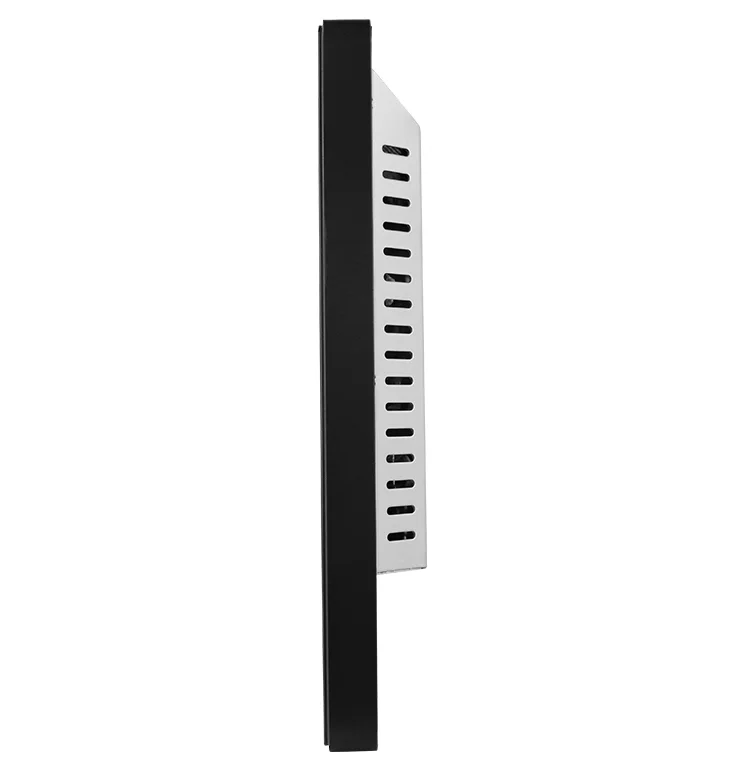

Flat Screen general touch open frame touch screen monitor 18.5 inch 10 points touch metal case vga dvi hd

  • 100 - 299 Units
    $199.00
  • 300 - 499 Units
    $196.00
  • 500 - 999 Units
    $192.00
  • >=1000 Units
    $189.00
Model Number:
HOP185
Lead Time:
Quantity(Units) 1 - 200 201 - 500 501 - 1000 >1000
Est. Time(days) 7 13 20 Negotiable
Customization:
Customized packaging (Min. Order: 500 Units)
Graphic customization (Min. Order: 500 Units)

More

Customized logo (Min. Order: 100 Units) Less
Samples - $230.00 /Units, 1 Units (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Screen Size:
18.5"
Type:
Capacitive
Interface Type:
D-Sub, DVI, Serial, USB, Standard-B USB/HD
Resolution:
1366*768
Brand Name:
OEM
Place of Origin:
Guangdong, China
size we can offer:
7-32 inch led lcd monitor
screen size:
18.5 inch 16:9
panel type:
TFT
color:
16.7 M black & silver
case:
metal housing case ,
inputs:
vga hd,dvi,av,tv ,usb,bnc inputs optional
Warranty:
2 years warranty
factory:
about 300 workers, welcome to visit
Certificates:
CE Rohs
keywords:
18.5 Inch metal case touch screen monitor
Supply Ability
Supply Ability:
50000 Unit/Units per Month 18.5 Inch metal case touch screen monitor
Packaging & Delivery
Packaging Details
55*23*42CM / 55*23*42CM 11.8KG
18.5 Inch metal case touch screen monitor
Port
Shenzhen
Lead Time :
Quantity(Units) 1 - 200 201 - 500 501 - 1000 >1000
Est. Time(days) 7 13 20 To be negotiated

Flat Screen general touch open frame touch screen monitor 18.5 inch 10 points touch metal case vga dvi hd

Product Description



Specification
General
SeriesWater-proof and Flat screen
Monitor DimensionsWidth: 254.8mm Height: 177.5mm Depth: 40mm
LCD Type18.5” Active matrix TFT-LCD
Video InputVGA and DVI, HD, Standard B type USB
OSD controlsAllow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power SupplyType: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical
LCD Specification
Active Area(mm)216.96 (H) x 135.6(V)
Resolution1366*768 @60Hz
Dot Pitch(mm)0.1695(H) x 0.1695(V)
Nominal Input Voltage VDD+4V(Max)
Viewing angle (v/h)80°/89°(CR>10)
Contrast800:1
Luminance(cd/m2)450
Response Time(Rising)25msec
Support Color16.7M colors
Backlight MTBF(hr)10000(Min)
Touchscreen Specification
TypeProjected Capacitive touch screen
Multi touch10 points touch
Touch Life Cycle10 millions
Touch Response time8ms
Touch System InterfaceUSB interface
Power consumption+5V@80mA
External AC Power Adapter
OutputDC 12V /4A
Input100-240 VAC, 50-60 Hz
MTBF50000 hr at 25°C
Environment
Operating Temp.0~50°C
Storage Temp.-20~60°C
Operating RH:20%~80%
Storage RH:10%~90%




Buyer Feedback





Hot Touch Display



Company Information

Shenzhen  Hopestar Sci-tech Co., Ltd. is a leading company of LCD and LED Monitor in shenzhen ,China ,As a High - tech enterprise, we have our own R&D, Factory,Marketing and after sales service department,We are specialized in LCD Monitor, Touch Screen Monitor,CCTV Monitor , Open Frame Monitor, All in one PC since 2002



HOPESTRAR Factory

Area: 10,000M² Non-dust standard workshop
Worker: 300 workers
Annual :1,000,000pcs of monitors annually

Certifications



Packaging & Shipping

Shipping:





Our Services



Sample Availability & Policy:
Paid samples are available in 3 - 7 days.
Buyer covers the shipping cost, Sample fee can be deducted from the first order
OEM & ODM sample lead time to be discussed.

Product Compliance :
All our Products can be compliant with RoHS, CE, FCC.
We can also do WEEE / REACH Complaint.
Recycle Material Compliant
UL / CSA Complaint can be done upon requirement
PSE / NCC can be done upon requirement


Warranty & Spare parts Conditions :
1. Our Products comes with 3 Year Warranty
2. We offer Premium Quality for Customer to make better profits
3. We maintain High Quality Standard
4. Our Products makes Customer Best Seller Product
5. We provide Best Product for futher sales
6. We sell Original Authentic Product to Customer
7. Our Products are Environment Friendly Products.


TRADE INFO

Trade Terms: FOB, CIF, EXW
Payment terms: T/T, Western Union, PayPal, Escrow, MoneyGram.
Payment Condition: 30% deposit in advance, 70% balance after delivery
Delivery Time:5-7 working days after deposit,3-4 working days for inventory
Packing: Neutral Carton, Wooden case for large size
Shipping: By sea, by air and by express delivery

FAQ

 1) Q:What is the minimum order?A: Yes, our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.



2) Q:What payment methods your company accept?A:We accept most of the payment methods, Western Union, Paypal, T/T



3) Q:How long is the warranty time for your products?A:3 years



4) Q:I haven't done business with you guys before,how can i trust your company?A:Our company has been in Alibaba.com for 7,almost 8 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what'smore,we've got quite a lot authority certificates,for example,CE, RoHS, ISO9001, BV, Alibaba onsite check certificate. I hope those above will be persuasive enough.



5) Q:what's the shipment terms and delivery time of your company?A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-5 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.



6) Q:Do you give any discount ?A:I'll surely try my best to help you get those by the best price and good service at the same time.



7) Q:I would like to ask you if it's possible to have my logo on the product.A:We hope you know that our company Hopestar perfectly support customized logo service.
