Widescreen 16:10 EDP Panel 10" SDI HD LCD Monitor CCTV Display for Film Recorder Security System

  • 10 - 99 Pieces
    $87.00
  • 100 - 499 Pieces
    $85.00
  • >=500 Pieces
    $81.00
Model Number:
H101EDP
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 300 Pieces)

More

Graphic customization (Min. Order: 300 Pieces) Less
Samples:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
CNHOPESTAR or ABELOE
Screen Size:
10.1"
Brightness:
400cd/m
Interface Type:
D-Sub
Application:
Desktop
Contrast Ratio:
1000:1
Widescreen:
Yes
Response Time:
5ms
Panel Type:
EDP
Product Name:
10 inch lcd cctv monitor
Panel:
EDP/IPS/TNT optional
Certification:
CE EMC/LVD
Resolution:
1920*1200
Optional resolution:
800*600/1280*800
Viewing angle:
178/178

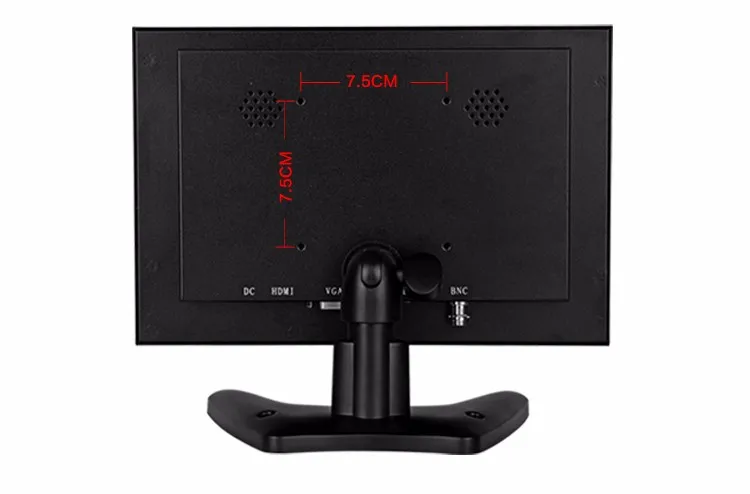

Vesa mount:
100*100mm*4 Vesa mount
Installation:
Desktop and Wall mount
Color:
Black (other could customized)
Key words:
10" SDI HD LCD Monitor CCTV
Products Status:
Stock
Pixel Pitch:
0.264mm*0.264mm(H,V)
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month 10" SDI HD LCD Monitor CCTV
Packaging & Delivery
Packaging Details
Carton size: 38*36*53cm
10Pcs/CTN
Weight:8.5KG
10" SDI HD LCD Monitor CCTV
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 To be negotiated



Product Description

Widescreen 16:9 EDP Panel 10" SDI HD LCD Monitor CCTV Display for Film Recorder Security System

High resolution 10 inch camera protable cctv test monitor bnc .jpg

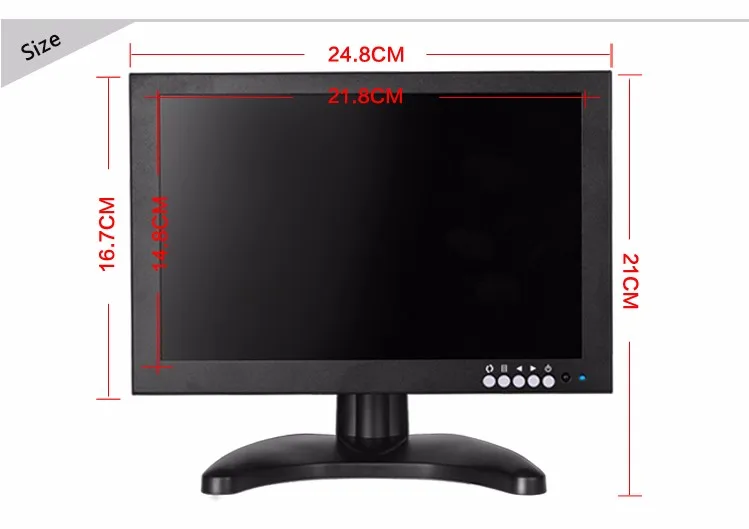

Panel Size 10.1 inch
Panel EDP  (TFT/IPS/EDP optional)
Screen Ratio 16:10
Potch 0.264mm×0.264mm(H,V)
Resolution 1920*1200  (800*600, 1024*768, 1280*800  optional)
Contrast 1000:1
Brightness (cd/m2)400cd/m2
Response time(ms)5ms
Viewing Angle 178°/178°
Color 16.7M
Working life50,000(hours)
Function Industrial metal shell, wear-resistant vibration, anti-jamming, challenging harsh environments, super heat

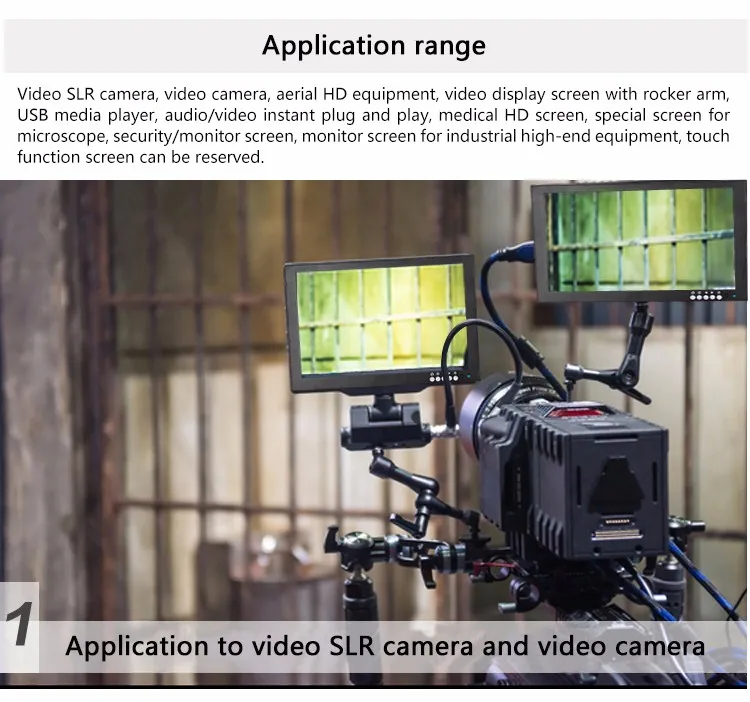

Can do high-definition digital TV, high-definition industrial equipment display, high-definition monitor closed-circuit display, computer display, high-definition photographic display HD, 1080P display
4D color management and image processing
Multiple mode selection inputs
High-brightness, full-screen display uniformity, no difference, no tailing;
Adaptive 3D Digital Noise Reduction, DLTL (Digital Brightness Moment Enhancement)
DCT (digital chroma instant enhancements), automatic skin color correction;
Automatic skin tone correction
Unique DNX (Digital Natural Expression), motion compensation image processing technology
Long life, low radiation, environmental protection
Interface VGA15 pins VGA
BNC1BNC Input
HDHD interface(1080p/1080i/720p)
YPBPR  R/Lchromatic aberration signal & audio signal input
AVAV input
Audio inputPC audio input
Audio outputPC audio output(Digital)
Power Built-in AC 100-240V,50/60Hz
Format PAL/NTSC/SECAM
OSD Control Multiple languages English,French,Spanish,Polish,Portuguese,Italian,German,Dutch,Russian(Option )
Working temperature 0°C - 50°C
Working Humidity10-90%
Installation desktop, wall mount
Packaging size 5 pcs carton  Size:36*70*61mm
Power consumptionLess 35W



 High resolution 10 inch camera protable cctv test monitor bnc .pngHigh resolution 10 inch camera protable cctv test monitor bnc .jpgHigh resolution 10 inch camera protable cctv test monitor bnc .jpgHigh resolution 10 inch camera protable cctv test monitor bnc .jpgHigh resolution 10 inch camera protable cctv test monitor bnc .jpgHigh resolution 10 inch camera protable cctv test monitor bnc .jpgHigh resolution 10 inch camera protable cctv test monitor bnc .jpgHigh resolution 10 inch camera protable cctv test monitor bnc .jpgHigh resolution 10 inch camera protable cctv test monitor bnc .jpg
