Quick Details

  • Products Status: Stock
  • Screen Size: 15"
  • Type: Resistive
  • Interface Type: D-Sub, DVI, Serial, USB, HDMI
  • Resolution: 1024 x 768
  • Brand Name: HOPE or OEM
  • Model Number: 1503M
  • Place of Origin: Guangdong, China (Mainland)
  • Color: Black
  • Brand: OEM or HOPE
  • Display ration: 4:3
  • Pixel pitch: 0.297H*0.297V
  • Max. resolution: 1024*768/60HZ
  • Number of color: 16.2M
  • Brightness: 300cd/㎡
  • Contrast ration: 450:1
  • Response time: 5ms
  • Keywords: touch screen monitor

Packaging & Delivery

Packaging Details: 405*145*393 MM One unit/ box
650*450*410 MM external carton(4PCS)
Delivery Detail: 2

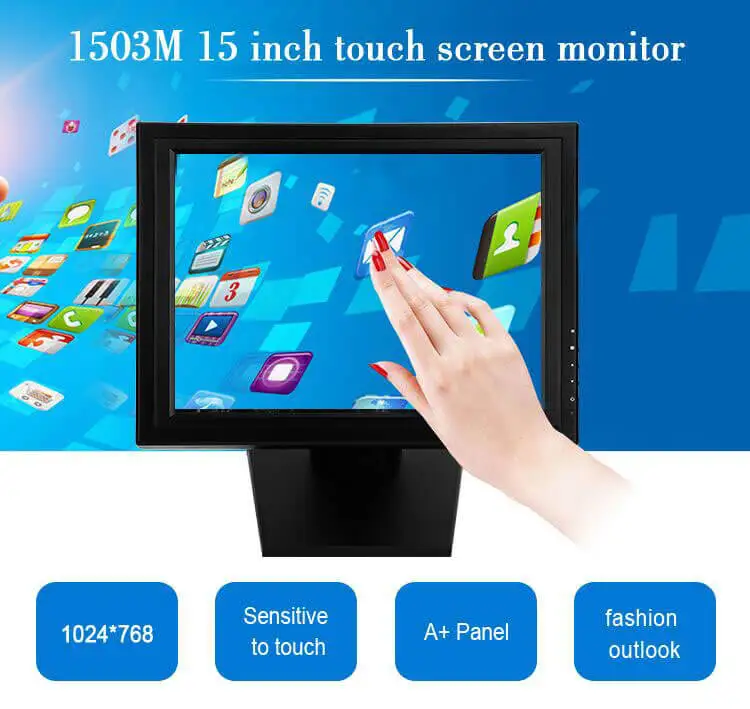

High quality 12 15 17 inch pos system touch screen monitor

Related Products


Product Description



  1. Flat Structure, Ergonomic design, Slim Frame,Streamline Modelling, Sophisticated Craft.
  2. Integrated systematic in displaying, touching and PC using, with only 42.9 mm thickness.
  3. Adopt the latest projected capacitive screen, it supports 10 points touch, available for both hand-writing and multi-points clicking.
  4. Response time is less than 3ms,high accuracy, easy for operation and maintenance.
  5. Anti-light interference, to ensure the accuracy during the process of operation(it can be used normally even under strong lights).
  6. Flexible configuration, can be expanded to install all accessories and functions based on customers' requirements.
  7. Aluminium Alloy+Metal Plate, without sharp edge, wear-resisting and antiseptic baking technology, Whole Anti-riot function.
  8. Advanced design, Strict assembly technology, Stable quality, Low malfunction.
  9. On and Off controlled together by one button, free of installation and debugging.



Panel size15 inch TFT-LCD Touch Screen Monitor
Display area304*228mm
Standard Resolution1024*768
Number of Colors16.2M
Brightness300cd/m2
Response time5ms
View angleHorizontal:160°
Vertical:140°
Contrase ratio500:01:00
Video input format(analog) RGB
ConnectorVGA for video signal
USB (or RS232) for touch
Frequency30~80KHz/60~75Hz
Power supplyExternal Power Supply:100 to 240V  (DC 12V)
Operation EnvironmentWorkable Temperature:-10 to 60°C   Storage temperature:-20 to 70°C
Operate relative humidity:20% to 80%;storage relative humidity:10% to 90%
Touch model4-wire resistive touch
 Optional(5-wire resistive touch,SAW,Infrared touch optional)
Duration50000hours
touch validity>1,000,000
Net weight6.0 Kgs/pcs,include stable mental base
Gross weight6.5 Kgs/pcs,include stable mental base
Power consumptionMax 30W
Setup (optional)1) provide wall brackets for wall-mounting, VESA 75mm&100mm
2) provide stable mental base to support the monitor

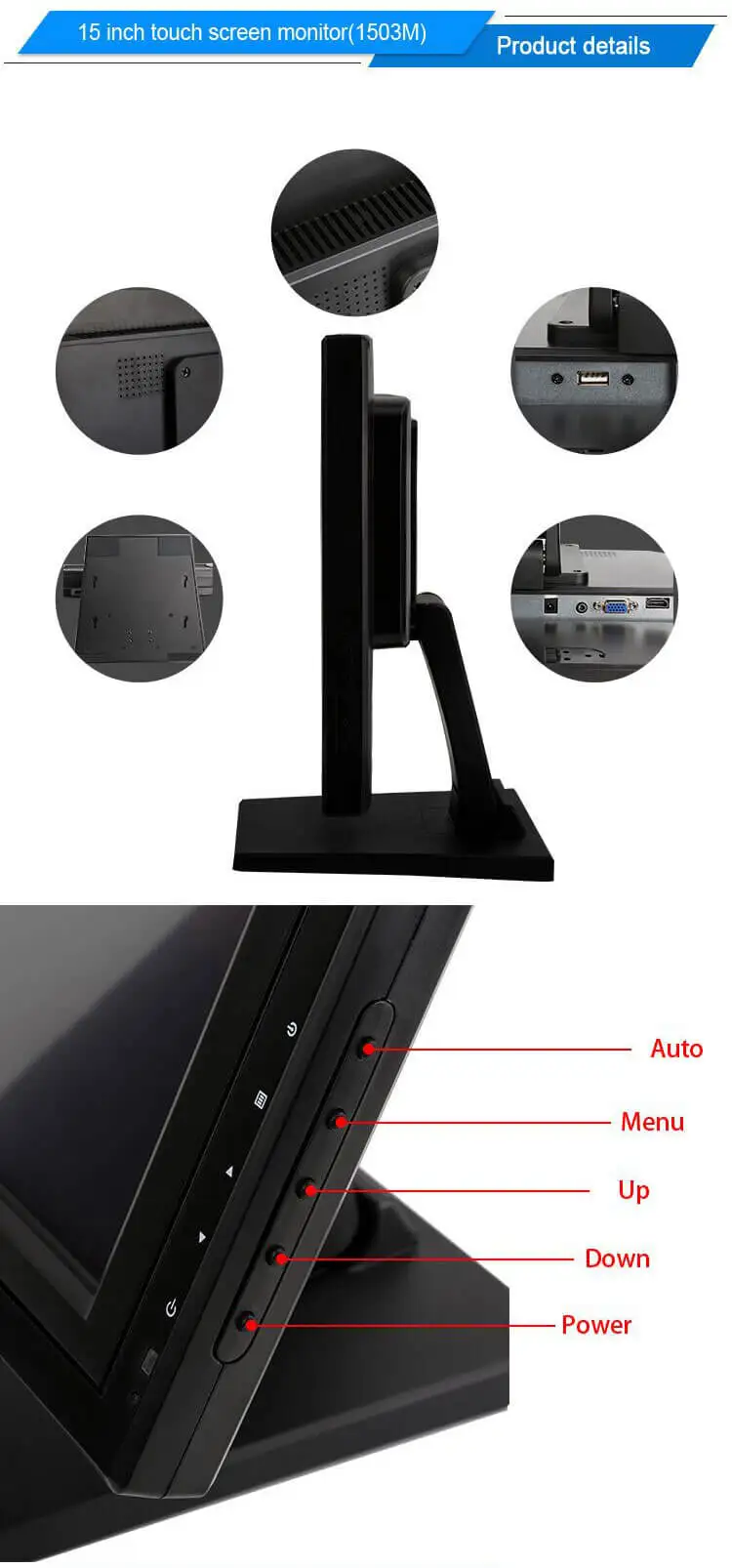

OSD  controlAUTO,+,POWER,-,MENU
brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset
Touch interfaceUSB or RS232 optional
Touch response time2ms
CertificateCE, ROHS
Warranty3 years
Operation systemWindows,Linux,Mac.















touch screen monitor

Company Information

Shenzhen  Hopestar Sci-tech Co., Ltd. is a leading company of LCD and LED Monitor in shenzhen ,China ,As a High - tech enterprise, we have our own R&D, Factory,Marketing and after sales service department,We are specialized in LCD Monitor, Touch Screen Monitor,CCTV Monitor , Open Frame Monitor, All in one PC since 2002



HOPESTRAR Factory

Area: 10,000M² Non-dust standard workshop
Worker: 300 workers
Annual :1,000,000pcs of monitors annually



Certifications



Packaging & Shipping

Shipping:



Packing:



Monitor size(not include base)375*285*55mm
Each unit box size420*370*155mm
Package size4pcs in a carton,carton size:650*450*430mm



Our Services



Sample Availability & Policy:
Paid samples are available in 3 - 7 days.
Buyer covers the shipping cost, Sample fee can be deducted from the first order
OEM & ODM sample lead time to be discussed.

Product Compliance :
All our Products can be compliant with RoHS, CE, FCC.
We can also do WEEE / REACH Complaint.
Recycle Material Compliant
UL / CSA Complaint can be done upon requirement
PSE / NCC can be done upon requirement


Warranty & Spare parts Conditions :
1. Our Products comes with 3 Year Warranty
2. We offer Premium Quality for Customer to make better profits
3. We maintain High Quality Standard
4. Our Products makes Customer Best Seller Product
5. We provide Best Product for futher sales
6. We sell Original Authentic Product to Customer
7. Our Products are Environment Friendly Products.


TRADE INFO

Trade Terms: FOB, CIF, EXW
Payment terms: T/T, Western Union, PayPal, Escrow, MoneyGram.
Payment Condition: 30% deposit in advance, 70% balance after delivery
Delivery Time:5-7 working days after deposit,3-4 working days for inventory
Packing: Neutral Carton, Wooden case for large size
Shipping: By sea, by air and by express delivery





FAQ

 1) Q:What is the minimum order?A: Yes, our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.



2) Q:What payment methods your company accept?A:We accept most of the payment methods, Western Union, Paypal, T/T



3) Q:How long is the warranty time for your products?A:3 years



4) Q:I haven't done business with you guys before,how can i trust your company?A:Our company has been in Alibaba.com for 7,almost 8 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what'smore,we've got quite a lot authority certificates,for example,CE, RoHS, ISO9001, BV, Alibaba onsite check certificate. I hope those above will be persuasive enough.



5) Q:what's the shipment terms and delivery time of your company?A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-5 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.



6) Q:Do you give any discount ?A:I'll surely try my best to help you get those by the best price and good service at the same time.



7) Q:I would like to ask you if it's possible to have my logo on the product.A:We hope you know that our company Hopestar perfectly support customized logo service.
